MK64FN1M0VLL12 ARM Microcontrollers MCU K601M Semicondictors Integrated Circuits Embedded Processors Controllers
Feature:
• Run power consumption down to 250 μA/MHz. Static power consumption down to 5.8 μA with full state retention and 5 μs wakeup. Lowest Static mode down to 339 nA
• USB LS/FS OTG 2.0 with embedded 3.3 V, 120 mA LDO Vreg, with USB device crystal-less operation
• 10/100 Mbit/s Ethernet MAC with MII and RMII interfaces
Performance:
Up to 120 MHz ARM® Cortex®-M4 core with DSP instructions and floating point unit.
Operating Characteristics:
• Voltage range: 1.71 to 3.6 V • Flash write voltage range: 1.71 to 3.6 V • Temperature range (ambient): –40 to 105°C
Memories and memory interfaces
• Up to 1 MB program flash memory and 256 KB RAM
• Upto 128 KB FlexNVM and 4 KB FlexRAM on devices with FlexMemory
• FlexBus external bus interface
System peripherals
• Multiple low-power modes, low-leakage wake-up unit
• Memory protection unit with multi-master protection
• 16-channel DMA controller
• External watchdog monitor and software watchdog
Communication interfaces
• Ethernet controller with MII and RMII interface • USB full-/low-speed On-the-Go controller
• Controller Area Network (CAN) module • Three SPI modules
• Three I2C modules. Support for up to 1 Mbit/s • Six UART modules • Secure Digital Host Controller (SDHC) • I2S module.
Specification:
| Product Category: | ARM Microcontrollers - MCU |
| Mounting Style: | SMD/SMT |
| Package / Case: | LQFP-100 |
| Program Memory Size: | 1 MB |
| Data Bus Width: | 32 bit |
| ADC Resolution: | 16 bit |
| Maximum Clock Frequency: | 120 MHz |
| Number of I/Os: | 66 I/O |
| Data RAM Size: | 256 kB |
| Supply Voltage - Min: | 1.71 V |
| Supply Voltage - Max: | 3.6 V |
| Minimum Operating Temperature: | - 40 C |
| Maximum Operating Temperature: | + 105 C |
| Packaging: | Tray |
| Analog Supply Voltage: | 3.3 V |
| Data RAM Type: | Flash |
| Data ROM Type: | EEPROM |
| I/O Voltage: | 3.3 V |
| Interface Type: | CAN, I2C, I2S, UART, SDHC, SPI |
| Moisture Sensitive: | Yes |
| Number of ADC Channels: | 2 Channel |
| Processor Series: | ARM |
| Product: | MCU |
| Product Type: | ARM Microcontrollers - MCU |
| Program Memory Type: | Flash |
| Factory Pack Quantity: | 450 |
| Subcategory: | Microcontrollers - MCU |
| Part # Aliases: | 9.35315E+11 |
Product Tags:
|
|

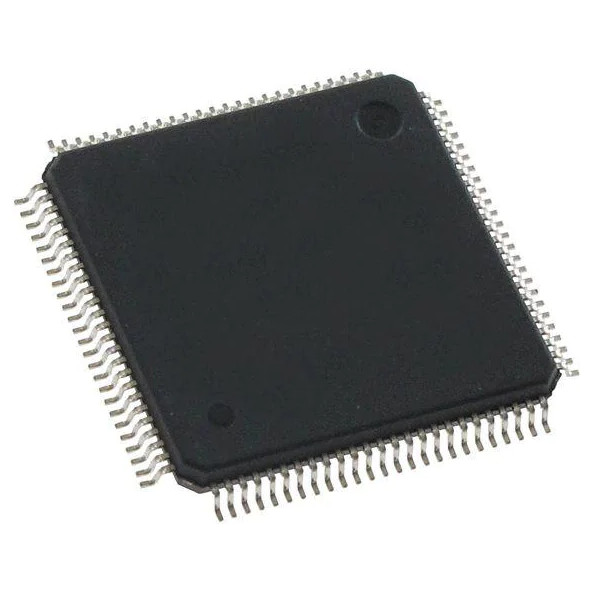

MK64FN1M0VLL12 ARM Microcontrollers IC K601M LQFP-100 EEPROM MCU IC Images
|
